Guangdong Daming Laffey Electric Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Smart Laffey |
| Model Number : | LFKNX-swxx-D8 |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Price : | Negotiable |
| Delivery Time : | 10-15 work days |

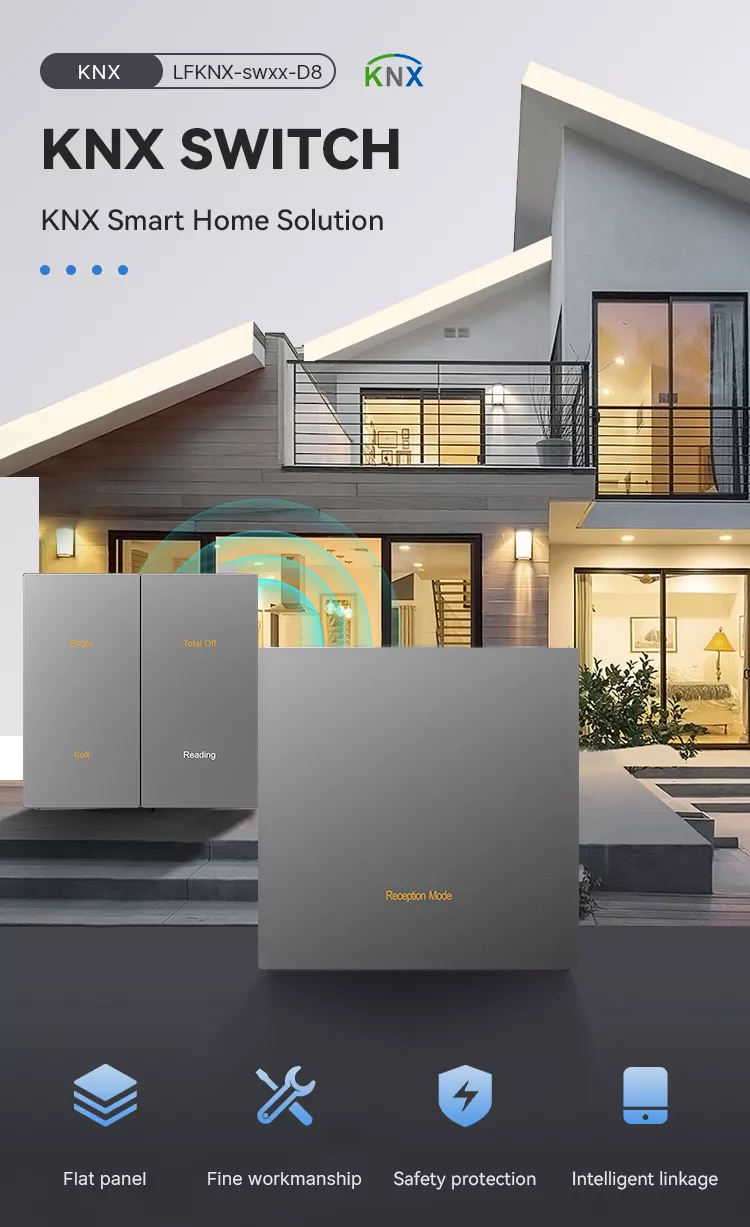

UK Standard Wall Switch KNX Push Button Light Controlling Home Switch
Specifications
| Product Name | Smart Switch of KNX |
| Brand | Smart Laffey |
| Size | 86mm*86mm |
| Color | Black/Champagne/Grey |
| Protocol | KNX |
| Power | 24V, DC |
| Back Box for Installation | UK Square Box |
| Conjoined | 2/3/4/5 conjoined |
| Function | Controlling lamp |
| Types | 1/2/3/4/6-button |
| Application | Connecting room control unit |
Product Features
D8 Series: Full plastic panel, push button type, UK standard square 86mm install wall box, multiple panels can connect seamlessly,vertical conjoined frame or level conjoined frame.
In addition, because the traditional switch does not have any identification, the user often has to try many times to find the switch that he wants to turn on, which causes great inconvenience. Today's electronic switches can solve this problem very well. According to the needs of users, personalized characters or patterns are engraved on the switch panel to identify the lamps connected to the switch, which is convenient for users to use.
KNX switch panels need to be connected through the control system. Control panels are mainly used in building control systems. It is installed as a system with other devices on the bus, and the function is simple and intuitive. Users can systematically plan and execute these functions according to their needs.
Control panels can be used to control switches, dimming, blinds, and more. Each channel on the panel includes a button and an LED indicator.
The control panel is a standard 86 back box mounted device with 6 key outputs. Connect the EIB/KNX system through the EIB bus, and use the engineering design tool software ETS software (ETS4 and above) to assign physical addresses and group addresses and set parameters.
The control panel is directly connected to the bus via terminal blocks and requires 24V DC auxiliary power. Each channel of the panel can use the various functions mentioned above and are independent of each other.
| Bus voltage | 21-30 VDC |
| Bus current | ≤ 12mA |
| Bus power | ≤ 360mW |
| Auxiliary voltage | 24 VDC |
| Auxiliary current | ≤ 30 mA |
| Auxiliary power | ≤ 0.75W |
Advantages
(1) Mutual benefit : We are factory also have more than 10 years experience in manufacturing and developing of switches and sockets.
(2) Customize : We have strong R&D team, we will try our best to custom product as your request.
(3) OEM service : (a) Printing your Logo (b) Engraving words or icons
(4) Mix order : We accept mix order, different model and small quantity order.
FAQ
1. Q:What’s the shipping method?
A: By express way. Such as Fedex, DHL, TNT and so on; by air or by sea. Shipping cost is decided by shipping ways and product’s actual weight and volume, also your detailed address.
2. Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM requirements.
3. Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser, also different batches, materials may be little difference, such as lining. Sometimes, the picture is for reference only. These are allowed in actual case. If any question, please tell us before order and ask clearly.
4. Q: Can I order one piece for sample or trial order less than MOQ to test the quality?
A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ.
5. Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
If you have another question, please feel free to contact us.
|
|
